In a post on the Mozilla MR Blog, I talked about the responsive AR/VR interface we created for a WebXR version of A-Painter, called A-Painter XR. In that post, I mentioned that we started working on this app while envisioning the ability to create and share ā€œAR Graffitiā€ out in the world.

When Trevor Smith and I started working through what it would take to do a simple ā€œAR Graffitiā€ demo last fall, part of the goal was to experiment with a realistic mobile WebXR AR application, to get a sense of problems that need to be solved to create AR apps using WebXR, and what the solutions might look like.

In this post, I want to touch on some of the issues raised by the A-Painter XR project, and the requirements that highlight the need for WebXR and Web-based AR more broadly.[1]

Geospatial Content

The very first thing people wanted to do when we mentioned the idea of AR Graffiti is share what they created in the world with others. The image of a world filled with ā€œvirtual 3D paintings,ā€ that people created and left for others to find, caught peopleā€™s imagination. But current AR platforms (including WebXR) donā€™t make it straightforward to integrate geospatial content into an AR application. And on some platforms, the technology itself makes this difficult. Hololens, for example, doesnā€™t have any way of aligning itā€™s coordinate system with the world because it lacks an electronic compass. Some platforms makes is easier than others; ARKit, for example, allows its local coordinate system to be automatically aligned with the geospatial East-Up-South coordinate frame without giving the userā€™s actual location to the application.

On the web, we care very much about only giving web pages location access if the user explicitly grants permission. With user permission, and the right device capabilities, integrating geospatial content should be easy. The Argon4 browser and associated argon.js framework, for example, leverage the cesium.js geospatial math libraries to integrate all content into a global geospatial coordinate frame and align the local device tracking coordinates with geospatial coordinates.

The question of how much of this should be integrated into WebXR and how much left to the web developer is unclear. ARKitā€™s approach is promising and points at one possible approach: a developer could ask for the device coordinates to be aligned with East-Up-South (EUS) if the platform is capable of it, and then do the spatial alignment between the browser's reported geospatial location and the platform coordinate system if the user gives the web page location access.

Precise Localization

Having access to geolocation is only part of the problem, however. The location API on mobile devices can only get you part of the way toward sharing AR Graffiti in the world; if you want to drop an AR painting into the middle of an outdoor field, and you only care that itā€™s near the center of the field, the accuracy of geolocation APIs on current devices is good enough.

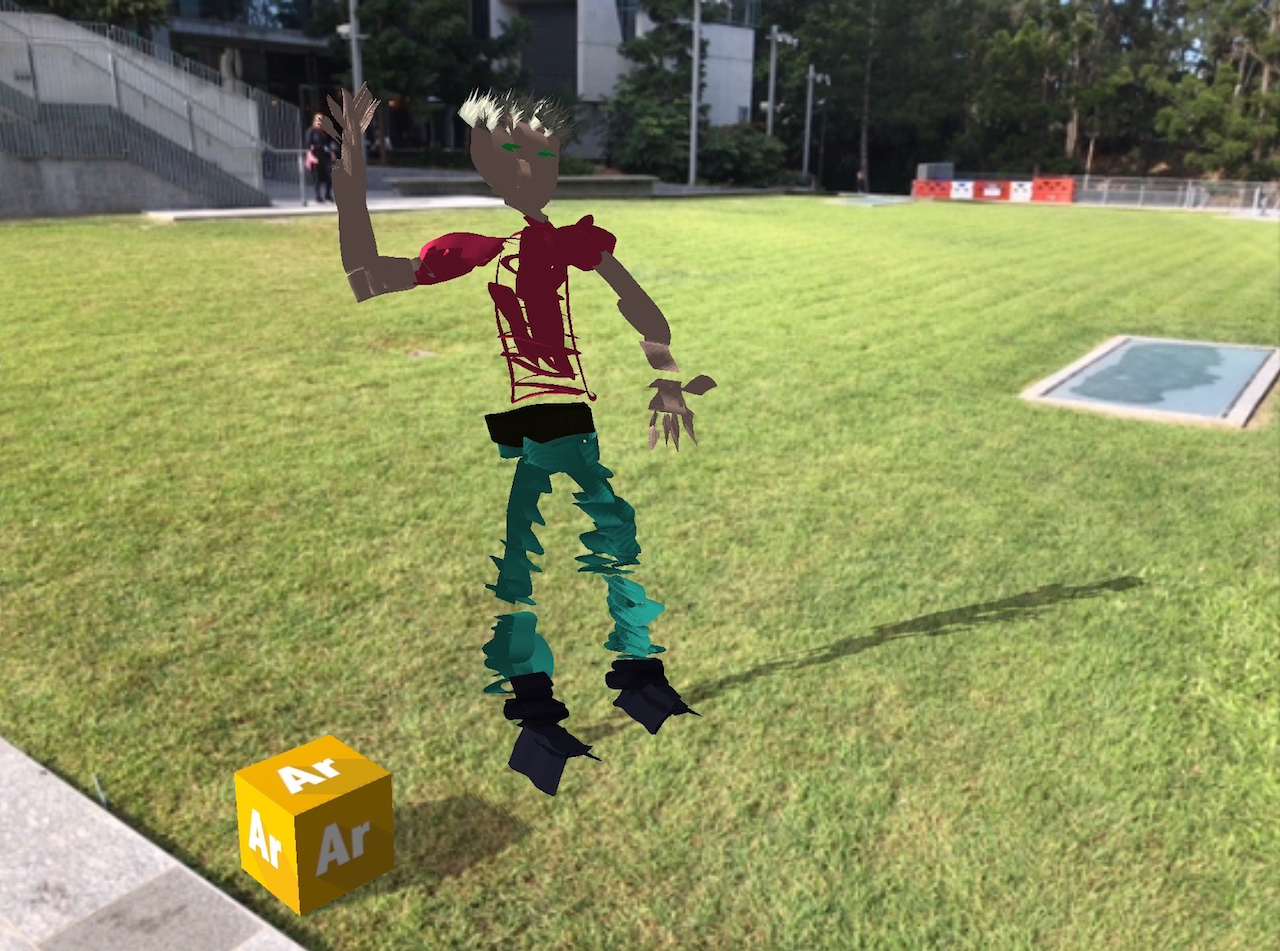

An AR painting created by A-Painter, presented on the Argon4 web browser.

But if you want to have the painting standing in an exact location of the field, such as beside the sidewalk in this picture, or if you wanted to paint giant spider webs hanging between the windows on a building, or paint a mustache on a statue near the field, GPS is not going to be accurate enough any time soon.

Weā€™ve been referring to this problem as the ā€œlast meterā€ problem. GPS can get you within a few meters of your real location, but how can we refine the outdoor location (or the user and content) to sub-meter or sub-centimeter accuracy? How can we ensure that the mustache appears on the statue, the 3D birthday ā€œcardā€ over the center of the kitchen table, or the maintenance alert left by a technician over the right part of the right machine?

One approach is to try and solve the problem globally. A few articles have been written recently about the idea of an AR Cloud or Mirror World or something similar: a massive, continuously updated model of the world created by aggregating sensor information from AR users, allowing devices and content to be positioned accurately in 3D space anywhere in the world. This idea might be appealing from a technical viewpoint (such a system might solve localization, persistence, ensuring everyone has the same coordinate systems, occlusion of content by the physical world, and on and on, in one fell swoop!). But it seems inconceivable that such a system could be built without creating intractable privacy and surveillance problems, even without considering the implications of a security breach on the database.

Any system that uses automated crowd-sourced techniques to create a fully detailed model like this would eventually include precise models of everywhere in everyoneā€™s home and workplace. No automated system could deal with the complex social notions of what is or is not considered private, who has the rights to share it or access it, and so on.

Perhaps alternative architectures, where public data is more carefully collected, curated and maintained (e.g., akin to Googleā€™s Streetview or Bingā€™s Streetside View) and combined with private data accessible only to the user and their devices (e.g., akin to the maps created by Hololens) could help solve this problem in a more socially responsible way. It may be that some capabilities will need to be given up (e.g., perhaps we donā€™t get shared 3D maps of the physical world, but can still rely on localizing ourselves, people we are with, and the content we care about to a common local coordinate system?) to achieve an ethical and socially acceptable solution to this problem.

The question of how precise localization relates to the WebXR Device API is unclear. Should WebXR focus on exposing displays and local precise tracking, and leave the question of relocalization to other web or platform facilities? Should platforms themselves deal with relocalization transparently (e.g., by going all-in on an ā€œAR Cloudā€) and give users all-or-nothing choices (e.g., contribute to the AR cloud or donā€™t experience large classes of AR content)? Should the browser handle relocalization as part of a collection of WebXR services (e.g., users choose their ā€œAR Cloudā€ service, like they choose their search service)? Should applications themselves deal with relocalization (e.g., by accessing the appropriate sensor and visual data and passing it up to their servers, and then on to an AR Cloud provider of their choosing)? Is one of these approaches preferable, or should we support some combination of them? What would be best for users, as opposed to the companies chasing this market?

Persistence

Knowing where things are is actually a separate question from having them persist. We could modify the A-Painter XR code to store the geospatial location of paintings with them, and make those paintings available to anyone near the right location (something we did for an experiment at one of our recent company meetings). Without high-quality localization, the results are not as interesting as you might hope, since so much of what people would like to draw in the world is done in relation to physical things in the world: we want to draw on that statue, not near that statue, and most people certainly donā€™t want to create entirely virtual statues.

Regardless, itā€™s best to think about localization and persistence as separate issues; one requires the other (e.g., an application needs to know where something is, as precisely as possible, if it wants to have it persist at that location), but not the other way around (e.g., whether an application wants to keep content around over time is a separate question).

I mention this here because when presented with the idea of AR displays, many people imagine being immersed in a world where any content that has been created is available to them. But such a world is untenable; if I type ā€œTimes Square New Yorkā€ into google.com, it returns 171 million results. Which of those should we display to users walking through Times Square? [2]

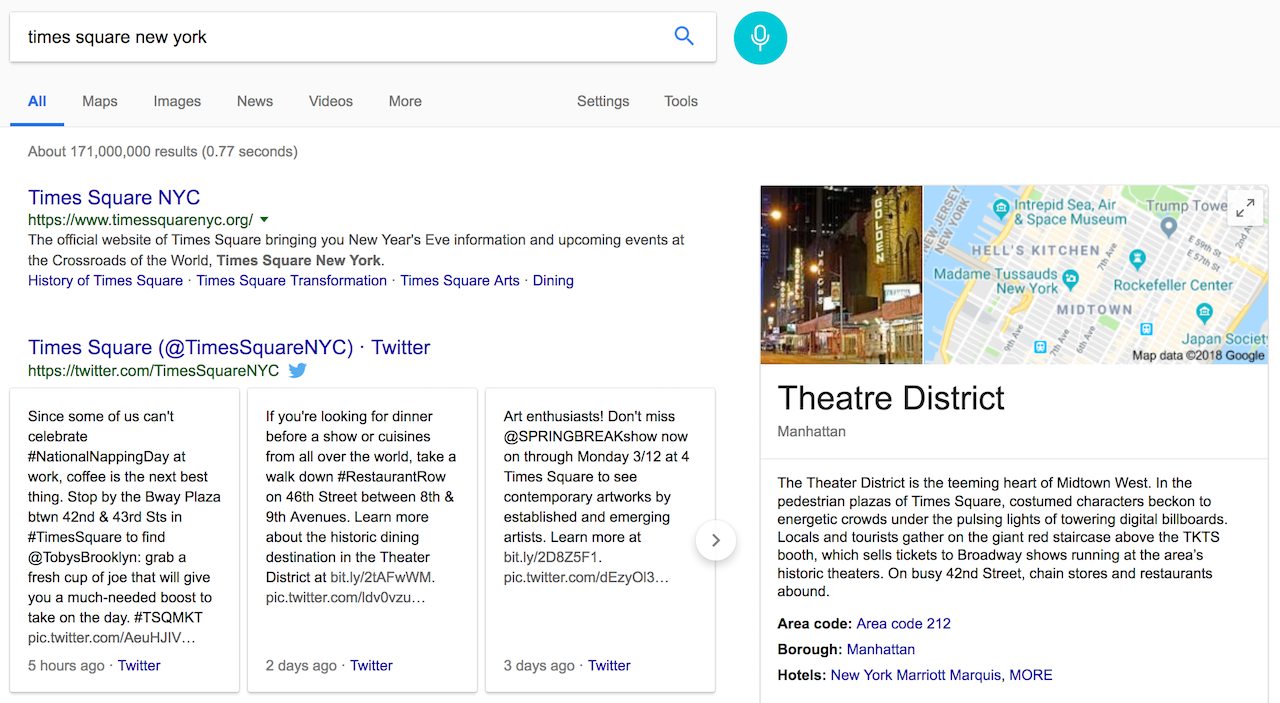

Snapshot of a Google Search, taken on March 12, 2018.

Rather, persistence is likely to be done by the application in conjunction with other web services (such as a relocalization service), and discovery of persistent content may need to be handled analogously to current approaches to search.

Visual and Spatial Search and Discovery

Assuming we want to share AR graffiti paintings with others, how should they discover and access them? The A-Painter XR application itself might provide access to paintings, just as current apps provide access to their data now. Paintings may also be exported to spatial search engines, and discovered automatically (much as content found by web crawlers can be discovered via Googleā€™s, Microsoftā€™s and Appleā€™s map search).

But what if someone wants to create AR graffiti thatā€™s associated with ā€œthingsā€, not places. For example, perhaps I want to attach graffiti to a movie poster, or a certain kind of car, a political image, a person, or even (perhaps) to a unique object that Iā€™m not willing or able to assign to a static location. How does an application attach content to things? How do apps search for things visually?

Itā€™s useful to distinguish between two kinds of visual search: general search (ā€œis there anything of interest near me?ā€) and application specific search (ā€œis there content for this application near meā€). The general visual search problem is very hard, and being worked on aggressively by multiple companies, but it is unclear how best to present the results to the user, and how companies will be willing to let the services be used. It might be, for example, that visual search in a browser works similar to text search: I put my browser in ā€œsearchā€ mode, and the features, structure and images seen by the device are sent to a service. A WebXR ā€œresultsā€ page is returned to the browser, with the content, layout and links controlled by the search engine (much as the layout of the results page from Google or Bing is controlled by those services). This could be made to work in a straightforward way.

Application-specific search is different. With a more restricted set of content, individual applications can filter and control the results of their search in very different ways. The A-Painter XR graffiti search engine could use a more customized search service that knows only about nearby locations and the ā€œthingsā€ that users have attached graffiti to, a much easier problem. Application-specific services can also be monetized differently, with the search engines and applications passing on costs in different ways depending on their business models.

For general search, the camera and sensor data can be processed inside the browser, and the results passed directly from the browser to the search engine; there wouldnā€™t be any need for video or sensor data to be made available to a web page.

But for application-specific visual search to be possible, the cameras and sensors on the device must be available to web applications. Making this available to applications would necessitate user-permission, and will enable not just visual search, but any sort of custom computer vision an application might want to do.

Custom Computer Vision

Getting access to cameras and device sensors inside a web page is currently possible, but in very limited ways. Cameras can be accessed via WebRTC getUserMedia, but essential information for computer vision isnā€™t available (e.g., camera intrinsics, temporal synchronization about the pose of the device relative to the camera frames) and access image data from frames in the video streams is expensive and slow (because they APIs are optimized for display and streaming, not local processing). Despite the limitations, many interesting experiments have been done with computer vision on the web over the years (e.g., tracking.js, jsartoolkit, HeadTracker, and so on), but such experiments have never achieved results close to what is possible with native platforms.

WebXR could change this. Some building blocks are in place or being worked on: WebAssembly gives web pages access to near native speeds, and WebCL (or other approaches to next-generation GPU access) may enable cross-platform GPU-based processing. The missing piece is efficient access to camera and sensor data.

In the context of WebXR, we have the opportunity to create an API for camera and sensor access that is limited to the cameras and sensors on the XR device: the camera being used by ARKit or ARCore, on the front of the Vive or Hololens, or embedded in any of the newer devices under development. In all of these cases, the underlying platform knows the precise specifications of the cameras (their intrinsic properties, like focal length and distortion, as well as their position and orientation relative to the local tracking coordinates reported by the device), and usually has efficient access to the video frames and sensor readings from the devices on the display. By focusing on providing efficient access to just the cameras and other sensors on an XR device, a wide range of custom sensing could be available to web applications, without the need to standardize and build the technology directly into every browser.

Consider the problem mentioned in the A-Frame XR blog post, that of drawing on the world via the touch screen. This is a hard problem, and an active area of research. For example, in their "Anchoring 2D Gesture Annotations in Augmented Reality" [3], researchers at UC Santa Barbara explored ways of inferring where in space a 2D drawing might best be located; similar techniques are being explored by other researchers and companies, along with a host of other custom computer vision techniques to support AR interaction and applications.

There is no reason that such techniques couldnā€™t be built into web applications, if the data could be provided efficiently and with the necessary metadata to enable computer vision applications to run across the range of XR platforms.

Moving Forward

These five areas are examples of the sort of issues that need to be tackled and solved if WebXR is to support the kinds of non-trivial AR applications people will want to build once WebXR becomes a reality.

I want to encourage everyone to think about what capabilities they need to create the kinds of applications that excite them, and to get involved in the Immersive Web Community to make sure that the web becomes the best place to create, share and experience AR and VR content and applications.

(This post also appears on Medium at https://medium.com/@blairmacintyre/webxr-reflecting-on-the-needs-of-real-ar-on-the-web-57ce13b14a7d)


  1. We'll expand on some of these topics back on the Mozilla blog, but I wanted to get these less-baked ideas out there to spur discussion. I also want to thank my colleagues at Mozilla and Georgia Tech for contributing to these ideas. ā†©ļøŽ

  2. Real-time information filtering is going to be big business for mobile AR. Not just to deal with the volume of information, but also to provide different views for different contexts. Some parents may want their kids to have the PBS Kids or Disney approved-content filter; others may want to dramatically change the styling of their views ala Rainbow's End consensual realities. ā†©ļøŽ

  3. ā†©ļøŽ
